Architecture

The Reconmap multi-tier architecture was designed to scale and serve anything from small pentesting teams to large infosec organisations. At a high-level it consists of multiple clients (web and command line) that communicate to a Rest API to get and process information. Data is stored permanently in a PostgreSQL database, and a Redis service is used to cache information.

A keycloak identity service (Open ID connect) is used to authenticate users and JWT tokens are also used for service to service communication.

Authorization & Service Accounts

Centralized authorization is enforced via Open Policy Agent (OPA) rules integrated with the C# REST API through OpaActionFilter.

• Regular Users: Authenticated users are resolved to database records in the user table. Their roles and permissions are queried to validate requests.
• Service Accounts (Agents): Reconmap agent clients (reconmapd) authenticate via OAuth Client Credentials grant. Because they are machine accounts and do not exist in the database user table, the API bypasses the database user lookup during authorization check and maps them to a virtual Administrator user. This ensures agents can successfully execute their boot, ping, and check-in endpoints.

The last part of this architecture is Rabbitmq, a message queue and broker. This queue handles heavy or asynchronous background tasks like sending report emails and generating reports asynchronously.

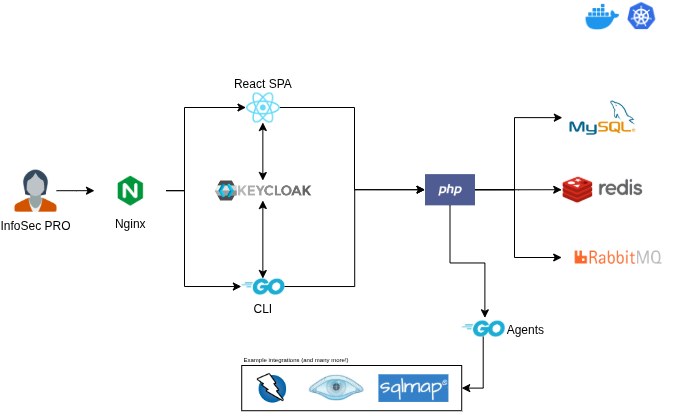

The diagram above was created from code using draw.io. See the source here.
